30 Years of Experience Automatic Brick Making Machine


  • Over 30 years experience in manufacturing and supply of machines.
  • Free installation
  • Professional customer service team on hand, 24/7
  • Free support for repair, operation and maintenance.

Apply Our Best Quotation

Automatic Brick Making Machine

  • Spare parts imported from key reputable manufacturers
  • Delivery available to any part of the world, on time
  • All sizes and shapes of moulds available
  • All machines are affordable and quality
QT4-25C Automatic Brick Making Machine

QT4-25C Automatic Brick Making Machine

The loading of the pallet, mixing and feeding of the raw material, and discharging of the brick after production, are all automated. It is low in cost but still ranks high in terms of efficiency and production capacity. The mould can be customized to produce any time of block you wish to produce.

  • Production capacity: 4608-5760 pieces/8 hours
  • Size: 4800*1650*2200mm
  • Power: 6kw
  • Pallet size: 850*550mm
  • Shaping cycle:15-25 seconds
QT3-20 Automatic Brick Making Machine

QT3-20 Automatic Brick Making Machine

This automatic concrete brick making machine is famed for a high production capacity and efficiency but is very affordable.

It also has a material economization feature that allows it to minimize waste of your raw materials.

To ensure durability of the machine, the frame is composed of strong steel and the engine has a water cooling system.

  • Production capacity: 4320-5760 pieces/8 hours
  • Size: 4000*3500*2300mm
  • Power: 16kw
  • Pallet size: 680*550mm
  • Shaping cycle: 25 seconds
QT4-18 Automatic Brick Making Machine

QT4-18 Automatic Brick Making Machine

This automatic concrete brick making machine has a PLC control system. Hence, it takes a simple click of a button to control it and one can easily diagnose faults with its human-machine interface.

Although smaller than the QT4-15, it’s still bigger than the QT4-25C.

You can produce any type of block with this machine. Hence, you can save money that would have been used to purchase a machine for each type of block.

  • Production capacity: 34560-51840 pieces/8 hours
  • Size: 4800*1650*2400mm
  • Power: 24kw
  • Pallet size: no pallet
  • Shaping cycle: 15-18 seconds
QT4-15 Automatic Brick Making Machine

QT4-15 Automatic Brick Making Machine

This machine features distinct design, quality, and an affordable price. It’s safe to say that it stands together with other quality concrete brick making machines on the market.

The mould lasts very long because of specialized welding techniques used to hold together it’s parts.

All spare parts are imported from reliable, reputable, and quality-adherent spare parts manufacturers such as Siemens, Moron, Emerson, etc.

You can produce any type of block with this machine with a simple change of mould.

  • Production capacity: 7680-11520 pieces/8 hours
  • Size: 6800*1660*2450
  • Power: 27.5kw
  • Pallet size: 1020*570mm
  • Shaping cycle:15-20 seconds
QT5-15 Automatic Brick Making Machine

QT5-15 Automatic Brick Making Machine

QT5-15 supports the usage of any type of raw material ranging from ash, sand, gravel, coal gangue, etc. In addition to that, you can exchange the mould to produce any type of block you have in mind.

The blocks it produces have been confirmed to have high tensile strength, density, and overall quality.

If you happen to be a middle-sized concrete brick manufacturer, then going for this machine wouldn’t be a bad idea.

  • Production capacity: 9600-15040 pieces/8 hours
  • Size: 4800*1650*2200mm
  • Power: 32kw
  • Pallet size: 11000*570mm
  • Shaping cycle:15-20 seconds
QT6-15 Automatic Brick Making Machine

QT6-15 Automatic Brick Making Machine

This automatic brick making machine, comes with a super-strong vibration system, robust frame, and an engine that’s dependable.

The mould can be changed to produce different concrete bricks that differ in shape and size.

If you wish to economize your raw materials, this machine will be a good fight.

  • Production capacity: 11520-17280 pieces/8 hours
  • Size: 8000*1950*2700mm
  • Power: 32kw
  • Pallet size: 900*700mm
  • Shaping cycle:15-25 seconds
QT8-15 Automatic Brick Making Machine

QT8-15 Automatic Brick Making Machine

QT8-15 happens to be a fully hydraulic automatic concrete brick making machine.

It is controlled by a PLC system that supports input and output of data, and diagnosis of chance signals.

The transition of the material from the hopper into the mold is rapid and even. Hence, there’s a little likelihood of error in the weight of the final block.

Labor costs are reduced to the barest minimum. Instead of spending money on labor, you can divert such monies to spend on growing your factory.

All blocks are of high quality and density.

  • Production capacity: 15360-23040 pieces/8 hours
  • Size: 8300*3000*18600mm
  • Power: 51kw
  • Pallet size: 950*900mm
  • Shaping cycle:15-20 seconds
QT10-15 Automatic Brick Making Machine

QT10-15 Automatic Brick Making Machine

QT10-15 is a fully automatic concrete brick making machine. It has a recycle feeding system that allows you to economize material without compromising on the quality of the block the machine produces.

The moulds are composed of 55# manganese steel which is also subjected to heat treatment at high temperatures. The combination of the both, makes the moulds to last longer than normal.

  • Production capacity: 19200-28800 pieces/8 hours
  • Size: 9350*2320*2950mm
  • Power: 67kw
  • Pallet size: 1100*900mm
  • Shaping cycle:10-15 seconds
LT2-10 Automatic Clay Brick Making Machine

LT2-10 Automatic Clay Brick Making Machine

This automatic clay brick making machine comes fitted with a mixer, screen, and belt machine.

It’s quite easy to operate even without prior technical knowledge. Apart from that, the labor requirement is quite low.

The hydraulic pressure generated by this machine is north of 21 Mpa. Hence, you’re sure of producing blocks that check all boxes pertaining quality.

The mould can easily be changed to accommodate whatever brick you wish to produce. Two (2) bricks are produced in one mould.

  • Production capacity: 9000 pieces/8 hours
  • Size: 1050*1260*2200mm
  • Power: 6kw
  • Pallet size: 850*550mm
  • Shaping cycle:5-10 seconds
LT4-10 Automatic Clay Brick Making Machine

LT4-10 Automatic Clay Brick Making Machine

Material feeding, mould pressing, and mould lifting are all automatically controlled by a reliable PLC system. It comes fitted with a crusher, soil sieve, mixer, conveyor belt, and the host machine.

The raw material is clay which is also named earth, soil, or mud.

  • Production capacity: 11520-23040 pieces/8 hours
  • Size: 4800*1650*2200mm
  • Power: 10kw
  • Pallet size: no pallet
  • Shaping cycle: 8-10 seconds
LT5-10 Automatic Clay Brick Making Machine

LT5-10 Automatic Clay Brick Making Machine

This automatic clay brick making machine is produced by Lontto. In comparison to LT4-10, the hydraulic pump has been enlarged which also results in higher hydraulic pressure (60 Mpa).

There are two power options: diesel and electricity. Hence, it would be great to go for this machine if you tend to experience erratic power supply. You can continue work even in the absence of electricity.

  • Production capacity: 14400-2880 pieces/8 hours
  • Size: 2300*1900*1600
  • Power: 11kw
  • Pallet size: no pallet
  • Shaping cycle: 5-7 seconds
LT7-10 Automatic Clay Brick Making Machine

LT7-10 Automatic Clay Brick Making Machine

Qt8-15 is a fully automatic brick-making machine that is capable of producing a variety of blocks. It is built with hi-tech systems to automate the production processes and efficiently control the raw material input. It is a production line focused product for large-scale businesses who need a solid product within strict timeframes.

Technical Specifications:

  • Operating Power: 55 kW
  • Brick Capacity: Solid Block: 120960pcs/8hours
  • Pallet Size: 950x900mm

QT10-15 Concrete Block Brick Making Machine

In terms of size, this automatic brick making machine is bigger than the LT5-10.

It is completely automatic and relies on the high hydraulic pressure it produces, to make quality clay bricks.

As a show of its production capacity and efficiency, this machine produces 7 clay bricks in only one mould.

  • Production capacity: 20160-40320 pieces/8 hours
  • Size: 4800*1650*2200mm
  • Power: 15kw
  • Pallet size: no pallet
  • Shaping cycle:15-25 seconds

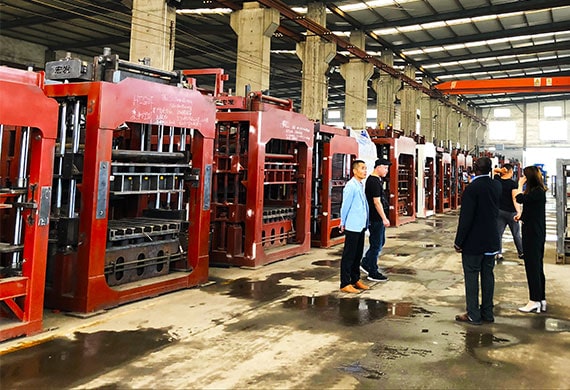

Automatic Brick Making Machine Factory

automatic brick making machine manufacturer lontto

LONTTO: Your Premium Automatic Brick Making Machine Manufacturer And Supplier

Getting a quality automatic brick making machine is of utmost importance to any brick manufacturer. The internet is rife with many companies making unsubstantiated claims of producing quality automatic brick making machines. Hence, your journey to getting a quality brick making machine is quite arduous.

However, in the vast population of automatic brick making machine manufacturers and suppliers, LONTTO stands out.

We have been doing this for 30 years: manufacturing and supplying machines to the four corners of the earth without any complaints on quality, poor service delivery, etc. We also have warehouses spread across several continents of the world. This greatly reduced our delivery time to whatever region you reside in, significantly.

If you’re still unsure about our quality, then hear from the professionals themselves. We have obtained several certifications of quality from different quality assurance organizations. Moreover, who else determines quality more than you and the professionals?

We have different factories spread over China, fitted with state of the art machines which ensure precision and accuracy. We are constantly on the lookout for the latest and best machinery to deliver on our promise of quality.

What are machines without a trained staff? Nothing!

We have a staff base of over 1000 professionals trained in various areas. There’s also a research and development department in our company that’s been responsible for over 30 certified patents…and still counting.

We put you first. Our company ethos is based on a culture that seeks to satisfy you – the customer – before anything else.

As proof of this, we provide free training on operation, repair, and maintenance of any machine you purchase from us. To go further, we also have a standby team of professional engineers that can install the machine in your company premises for free – no costs incurred by you, no hidden charges included in the overhead cost of the machine.

For those who choose to visit our factory in China, there’s free accomodation already prepared for you.

There’s a responsive, courteous, and dependable customer service team always on hand to answer any questions you might have and attend to any problem you might face. They are available 24/7.

We deliver to whatever region you might be located in. Distance is not a problem.

We have different models of brick making machines available for sale. The cement brick making machine we have for sale includes QT4-25C, QT3-20, QT4-18, QT4-15, QT5-15, QT6-15, and QT10-15.

The clay brick making machines available for sale include LT2-10, LT4-10, LT5-10, and  LT7-10. They are all of high quality and are dependable.

Still in doubt? You should visit our company website to see testimonials from other clients located across the world.

Related Products With Block Making Machine

Automatic Soil Brick Making Machine

Automatic Soil Brick Making Machine

Semi Automatic Block Making Machine

Automatic Concrete Block Machine

Automatic Concrete Block Machine

Automatic Hydraulic Brick Making Machine

Automatic Hydraulic Brick Making Machine

Automatic Brick Making Machine: The FAQ Guide

What are automatic brick making machines?

Simply put, automatic brick making machines are brick machines that are automated and are used to produce bricks: it could be fly ash bricks, clay bricks, concrete bricks, or paver bricks.

Buying an automatic brick making machine conveys numerous advantages such as saving cost, raw materials, and so on.

automatic brick making machine lontto

They are either fully automatic, or semi-automatic.

The major components of automatic brick making machines include:

  • Main machine

The main machine consists of a hydraulic cylinder used to produce hydraulic pressure, the mold, vibration table, and hydraulic pressure head.

To make the machine more durable, we make use of super strong steel for the frame of our machines.

  • Programmable control (PLC) system.

This is what differentiates automatic brick making machines from other machines.

The control system acts as a sort of intermediary between humans and the machine. It controls all aspects of the machine and makes operating it very easy.

An added advantage is its ability to properly and accurately diagnose faults with the machine.

  • Conveyor

The conveyor transports the materials from the hopper to the mould.

  • Silo

The silo stores the materials used in the manufacture of the brick. The materials could be cement, fly ash, slag, and so on.

  • Hydraulic system

The hydraulic system includes the hydraulic pump, pistons, etc. The hydraulic pump supplies the hydraulic pressure that compacts the brick. The hydraulic pressure produced by the machine varies with the size of the hydraulic pump.

  • Aggregate batch bin

Different types of grades of bricks demand different proportions of cement and aggregates. The aggregate batch bin is responsible for weighing the materials for optimum brick composition and distributing them evenly.

  • Mixer

Just as the name implies, mixers are used to thoroughly mix the raw materials together. They are fitted with motors that rotate at a fast rate to ensure that the materials within, mix thoroughly.

automatic brick machine parts

  • Forklift

The forklift is used to transport the ready-made bricks to the curing section.

  • Pallets feeder

The pallets are fed into the machine by the pallet feeder. The pallets come in different sizes depending on the size of the block you desire.

  • Block stacker

The block stacker stacks the bricks before they are transported to the curing section by the forklift.

What are the types of automatic brick making machines?

Broadly, automatic concrete brick making machines can be placed in two classes:

  • Fully automatic concrete brick making machine.

Just as the name implies, these machines are completely automatic. Every production process, beginning from the mixing, to the moulding, and discharging of the brick after manufacture, are all controlled automatically by a PLC system. It also comes with a remote examination system that allows you to conveniently diagnose any fault. A major advantage with these machine,.is the reduction in labour and time.

Large-scale concrete brick manufacturers can go for these machines.

Examples are QT5-15, QT6-15, QT8-15, etc.

  • Semi-automatic concrete brick making machine

This machine is not fully automatic. There is still a degree of human influence needed for the machine to properly function. However, the labor requirement is still far lesser than it’s manual counterparts.

These machines cost less than the fully automatic variants. Just like the fully automatic machines, they are easy to operate and maintain.

In addition, you are sure of getting a quality semi-automatic concrete brick making machine when you make a purchase from Lontto.

If you’re dividing brick making machines based on the raw materials or type of brick they produced, automatic brick making machines can be divided into four:

  • Automatic Concrete brick making machine

In this case, the raw materials are concrete, stone, slag, sand, pebbles, cinder, etc. Water and aggregates are also included.

The raw materials are mixed by adhering to a certain proportion as prescribed by the engineer.

  • Automatic clay brick making machine

These machines are specially designed for clay bricks. They produce clay bricks from clay which is also known as soil, earth, or mud in some quarters. In some very rare cases, little cement is also added.

  • Automatic paver brick making machines

Paver bricks have become very popular due to their aesthetic appeal, durability, and ubiquitous use. Paver brick making machines are used to produce paver bricks. They come in various colors and shapes.

The raw materials are usually stone dust, cement, and stone chips.

  • Automatic fly ash brick making machine

Just as the name implies, the raw material is fly ash. This machine is either fully automatic or semi-automatic.

What is the advantage of a concrete or clay brick machine?

Buying an automatic brick making machine must not be viewed as a short-term investment. Immediately you view it as such, you’ll cease to focus on the several advantages buying one gives to you.

Some of the advantages are:

  • Reduction in labour costs

A large part of the costs incurred by a business comes from labor. Buying an automatic brick making machine, reduces your labor costs to the barest minimum which allows you to focus your monetary resources on other aspects of your business. Hence, you’ll go home with a higher turnover.

  • Economization of raw materials

Nothing beats the wastage of raw materials that’s associated with many brick making factories. In some cases, the amount of materials that spill to the ground daily is so much.

Automatic brick making machines come with a recycle feeding system that eliminates waste without compromising the quality of the brick.

  • Accuracy and precision

During mixing, mistakes can occur in terms of the proportion of each constituting raw material. At the end of the day, this can lead to low quality blocks.

To ensure quality, it’s better to use an automatic concrete making machine. The mixing is automated and hence, more accurate.

Aside from that, the shapes, composition, and sizes are all uniform. In brick production, consistent results are highly appreciated.

  • More bricks, less time.

No more production short.falls. Automatic brick making machines produce large amounts of bricks in a matter.of hours without degradation of quality.

This allows you to finish your projects early, serve your customers without disappointing them, and take on new clients with all assurance that you’ll meet up with their quote.

  • Quality bricks

Bricks produced by automatic brick making machines are guaranteed to be of a high quality. This is because of the insane amount of hydraulic pressure and table vibrations that’s used to produce the blocks.

They have high density, perfect composition, and high durability.

  • Friend of the earth

The traditional means of brick making, produces a lot of carbon dioxide owing to curing of the bricks. When using brick making machines, you wouldn’t need to subject the bricks to high temperatures to harden them. All you need is to put them under the sun to dry.

These are just a few of the benefits. I’m pretty sure that these few are enough to convince you to make that long-term investment in a quality brick making machine from Lontto.

What should I consider before buying a brick making machine?

Just like any buying decision, buying an automatic brick making machine shouldn’t be a rushed decision. It ought to be a decision made, after careful considerations, research, and planning.

These little tips should guide you:

  • Sound of the machine

If you’re making a physical order of your automatic brick making machine at the factory, you should take note of the sound it makes when in operation. The sound is a good indicator of quality or lack is it.

  • Pocket size.

I’m sure you must have heard of the aphorism: cut your cloth according to your size.

It’s unwise to burn a hole in your pocket all in an effort to buy an automatic brick making machine. You should carefully look at your budget and ensure that investing in a machine wouldn’t mean a closure of your business.

You could also consult financial experts who could review your books, and peg an amount that would be wise to invest in a machine.

  • Company size

Some machines are far better for large scale industries while others are better for small scale industries. Whatever class you fall into, there’s a machine for you.

Also, if you intend to put the machine to personal use, a small automatic brick making machine will do just fine. However, if you intend to produce blocks that are to be sold commercially, going for a large automatic brick making machine will be far better.

  • Type of block

Each machine has the type or types of blocks it can produce. You should consult the technical specifications or contact the customer care desk for clarity.

  • Source of power

No machine runs on water (yet). Hence, you should put into consideration the nature of the power supply in your area: if it’s erratic, go for a diesel powered engine or one with a dual option but if power is stable, the electric powered machine would do.

  • Reputation of manufacturer or supplier

In this age of technology, finding out the reputation of any company shouldn’t be hard in any way. It’s just a click away.

The years of existence, global spread of customers, testimonials of previous customers, and the likes, can be used to judge the reputation of a company.

You should only be comfortable placing your money into the hands of a company you can trust.

  • Shipping costs

Apart from the cost of the machine itself, shipping costs could take the price of the machine to the roof. Hence, make an inquiry of the cost at your shipping council.

  • Technical specifications

Each machine has its specifications. You could contact our customer service desk here at Lontto, to send you a FREE document that breaks down the technical specifications of each machine available for sale.

  • Certification

The quality of the machines can be inferred based on the certification the company has gotten over the years. The company’s website could provide this information.

  • Customer service

A company’s quality is reflected in their customer relations. Aside from that, you wouldn’t want to be left hanging when you face difficulty in installation, operation or maintenance. From the first call you make to the company, you can decide if they will be a friendly helper or not when the time comes.

How does an automatic brick making machine work?

The mode of operation of an automatic brick making machine, takes place in four (4) major steps:

  • Mixing

The raw materials are mixed thoroughly in a mixer after they’ve been weighed to fit the proportion given by the engineer.

  • Feeding

The material is then transferred into the hopper by a conveyor belt with the help of a control motor.

  • Molding

The material now in the mould, is pressed by strong hydraulic pressure. At the same time, the mould is vibrated by vibration motors to remove any pores and ensure that the block is properly compacted.

  • Finished brick

The finished brick is moved out of the machine and carried to the curing area.

How can I maintain my automatic brick making machine?

No matter how good a machine is, improper maintenance – or lack of it – will make it pack up sooner or later. The secret to making any machine last long and perform well, is a good maintenance culture. Here are some tips to maintain your machine:

  • Cleaning

Remove grease, and wastes after each use that may lodge in hidden cavities while using the machine. To avoid rust, also add anti rust spray, and clean again.

  • Tighten loose nuts and bolts
  • Inspect mould for damages.

if you discover any damage such as cracks, take it to an expert for repair

  • Leave repairs and maintenance for only trained professionals. They are perfect to care for your machine.
  • The wrong screw in the wrong place or a switch in one machine part or the other, can lead to the machine breaking down eventually. Hence, only allow professional and skilled engineers to repair or service your machine.
  • Routinely service and oil all moving parts. Replace the oil in the engines too. Leaving oil that has already gone bad within the engine while using it, is really dangerous.
  • Take note of abnormalities.
  • Be it a deviation in the sound, shaping speed, etc, report it immediately to an engineer who could perform a thorough check of the machine to diagnose the fault.

What are the prices of automatic brick making machines?

The prices of automatic brick making machines differ. As one would expect, the fully automatic machines cost the most whereas the semi automatic machines cost less.

If you so desire, we could send you a price quotation to your email address for free. You should simply contact our customer service desk.

Where can I get an automatic brick making machine?

You can get your quality automatic brick making machine from Lontto.

They check all the right boxes when it comes to a dependable automatic brick making machine manufacturer and supplier. You should contact our customer service desk to get a free quotation.

Send Enquiry Now

Update cookies preferences
Scroll to Top
