Your Top Fly Ash Brick Machine Manufacturer

100% Factory Direct Sale, Cost-Saving

  • High-Grade machinery at a competitive market price.
  • Top Rated Brick making machine supplier in China.
  • Easy to handle Machines.
Apply The Latest Price Today

Apply Our Best Quotation

Fly Ash Brick Machine

  • Cost-effective solution for manufacturing high-quality fly ash bricks.
  • Denser & uniform fly ash bricks production.
  • Brick production using strong vibration & high-pressure molding.
  • High yield for good profit margins.
Get Your Inquiry Now
LMT4-40 Semi-Automatic Fly Ash Bricks Machine

LMT4-40 Semi-Automatic Fly Ash Bricks Machine

LMT4-40 by LONTTO is a fly ash brick making machine that has a small footprint requiring low manpower and good production of fly ash bricks.

It is a low power consumer and cost-effective choice for small investors.

Technical Specifications:

  • Operating Power: 3 kW
  • Capacity: Solid Block 15120-17304 pcs/8 hrs.
LMT4-35 Semi-Automatic Fly Ash Bricks Machine

LMT4-35 Semi-Automatic Fly Ash Bricks Machine

LMT4-35 is a slightly enhanced version of model LMT4-40, with increased production of fly ash bricks. Small to medium-size investors can use this machine to build a good business.

Technical Specifications:

  • Operating Power: 7 kW
  • Capacity: Solid Block 20160 pcs/8 hrs.
LMT4-26 Fly Ash Bricks Machine

LMT4-26 Manual Fly Ash Bricks Machine

LMT4-26 manual brick making machine is another good choice for small investors who are starting a fly ash brick business. LONTTO doesn’t only offer versatility with its fly ash brick-making machines but it also offers quality and customer-oriented business. You can contact LONTTO customer support for any queries.

Technical Specifications:

  • Operating Power: 6 kW
  • Capacity: Solid Block 34112 pcs/8 hrs.
QCM4-30 Mobile Fly Ash Bricks Machine

QCM4-30 Mobile Fly Ash Bricks Machine

QCM4-30 by LONTTO is another movable model of a fly ash brick making machine. Small size machine with low investment and suitable for small size businesses. Contact us for a price quote and more details.

Technical Specifications:

  • Operating Power: 4kW Electric Motor or 6HP Diesel Engine
  • Production Capacity: 3840 pcs/8 hrs. (Hollow Block 8-inches)
QMJ2-40 Mobile Fly Ash Bricks Machine

QMJ2-40 Mobile Fly Ash Bricks Machine

QMJ2-40 is a movable and smallest fly ash brick making machine. It uses only 100—300Sq. meters of the floor for its operation. Best suited for small brick making businesses.

You can reach out to us for more details regarding any of our products and we will guide you through.

Technical Specifications:

  • Power Source: Electric Motor (1.6 kW) or Diesel Engine
  • Brick Capacity: 8’ Solid Brick: 1280 pcs/8 hrs.
QMJ4-45 Semi-Automatic Fly Ash Bricks Machine

QMJ4-45 Semi-Automatic Fly Ash Bricks Machine

QMJ4-45 is semi-automatic mobile fly ash brick-making machine that one man can easily operate. Small, handy, and easily movable machine that offers flexibility with its design.

Technical Specifications:

  • Power: 5 kW
  • Molding Cycle: 45 secs
  • Capacity: 300 pcs of Hollow Brick per hour.
QMY4-30 Automatic Fly Ash Bricks Machine

QMY4-30 Automatic Fly Ash Bricks Machine

QMY4-30 is another mobile and hydraulics based fly ash brick manufacturing machine. It’s easy to move from one place to another and it has a very small footprint.

Small brick producing enterprises can buy this model for efficient use and good production of fly ash bricks.

Technical Specifications:

  • Operating Power: 7 kW
  • Production Capacity: 5800 pcs/8 hrs. (Hollow Block 8 inch)
  • Molding Cycle: 25-30 secs
QMY6-25 Automatic Fly Ash Bricks Machine

QMY6-25 Automatic Fly Ash Bricks Machine

QMY6-25 by LONTTO is a semi-automatic fly ash brick-producing machine. It has a compact size and it is a mobile model that you can move from one place to another. Contact us for more details and a price quote.

Technical Specifications:

  • Operating Power: 6 kW
  • Capacity: 8-inch Hollow Block 9000 pcs/8 hrs.

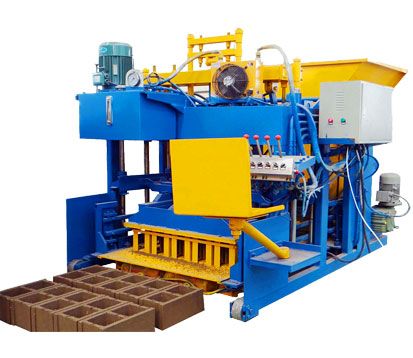

QMY10-25 Automatic Fly Ash Bricks Machine

QMY10-25 Automatic Fly Ash Bricks Machine

QMY10-25 is an automatic fly ash brick-making machine that offers high production for small-scale brick-making businesses.

It easy to handle and operate. It promises high brick production for its size.

Technical Specifications:

  • Capacity: 8’ Hollow Brick: 19200-28800 pcs/8 hrs.
  • Operating Power: 16 kW

QMY12A Automatic Fly Ash Bricks Machine

QMY12A is another automatic and hydraulics-based fly ash brick making machine that has a smaller footprint than QMY18A.

This model is a good choice for small enterprises. Contact us asap if you are interested. Our qualified staff will share all the intricate details with you.

Technical Specifications:

  • Operating Power: 16 kW
  • Capacity: 8’ Hollow Brick: 34560 pcs/8 hrs.
QMY18A Automatic Fly Ash Brick Making Machine

QMY18A Automatic Fly Ash Brick Making Machine

QMY18A by LONTTO is another uniquely designed fly ash brick making machine for medium-sized brick manufacturing plants.

The machine is built for endurance, long-lasting performance, and durability.

It requires low maintenance after long cycles of use. You can contact our support team for more details or you can get a quote by sending your query.

Technical Specifications:

  • Operating Power: 24 kW
  • Capacity: 8’ Hollow Block: 34560-51840 pcs/8 hrs.
QT3-20 Automatic Fly Ash Bricks Machine

QT3-20 Automatic Hydraulic Fly Ash Bricks Machine

QT3-20 is automatic fly ash brick making machine, fitted with a Mitsubishi PLC control system, robust hydraulics and it comes with a small footprint.

It is an ideal choice for small fly ash brick-making businesses due to its cost-effectiveness & compact design.

Technical Specifications:

  • Capacity: Hollow Block 8 inch – 4200~4600 pcs/8 hrs.
  • Operating Power: 16 kW

QT4-15 Automatic Fly Ash Bricks Machine

For large-scale businesses, QT4-15 is the ultimate choice as it is a production line machine for high production. The machine comes with PLC control for autonomous operation and a high yield of fly ash bricks.

LONTTO has a range of products available that you can buy after taking guidance from our technical support.

Technical Specifications:

  • Operating Power: 5 kW
  • Molding Cycle: 15 secs
  • Capacity: Hollow Blocks 7200-9600 pcs/10 hrs.
QT4-18 Hydraulic Fly Ash Bricks Making Machine

QT4-18 Hydraulic Fly Ash Bricks Making Machine

QT4-18 is an automatic fly ash brick making machine with PLC control, strong hydraulics, low power consumption, and strong build quality.

You can choose this machine if you have a medium-sized business. You can reach out to us for detailed features of this model.

Technical Specifications:

  • Capacity: 7680 pcs/ 8 hrs. (8-inch Hollow Block 400×200×200mm)
  • Operating Power: 19 kW
QT4-25C Automatic Fly Ash Brick Making Machine

QT4-25C Automatic Fly Ash Brick Making Machine

QT4-25C comes with automatic pallet-supplying, material-distributing, and brick-discharging, and a low-price tag.

It is suitable for medium-sized businesses. The machine is built with a PLC control for automatic functioning to produce fly ash bricks.

Technical Specifications:

  • Operating Power: 75 kW
  • Molding cycle: 15-25 secs
  • Capacity: Hollow Block (400×200×200mm) 5760 pcs/8 hrs.

QT5-15 Automatic Fly Ash Brick Machine

QT5-15 by LONTTO offers a compact design integrated with automatic functionality. This model is well suited for a medium fly ash brick production business.

You can choose QT6-15, QT8-15, QT10-15, or QT12-15 if you have a high demand for fly ash bricks. You can always consult with us before buying. Our qualified staff will be available to guide you 24/7.

Technical Specifications:

  • Operating Power: 26 kW
  • Molding cycle: 15-25s, (With pigment—20-25s)

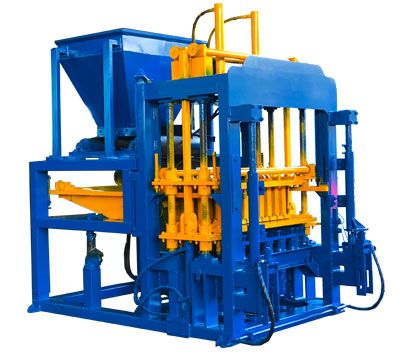

QT6-15 Automatic Fly Ash Bricks Machine

QT6-15 Automatic Fly Ash Bricks Machine

QT6-15 is another automatic fly ash brick making machine by LONTTO that offers autonomous functioning and production of quality fly ash bricks/blocks.

It is built for long-lasting performance periods and guaranteed good quality fly ash bricks.

Technical Specifications:

  • Operating Power: 43 kW
  • Capacity: Hollow Block (400x200x200mm) 21600 pcs/10 hrs.
  • Molding Cycle: 15-20 secs
QT8-15 Automatic Fly Ash Bricks Machine

QT8-15 Automatic Fly Ash Bricks Machine

QT8-15 by LONTTO offers a unique design with fully automatic functionality and autonomous fly ash brick production.

It is a good fit for medium to large fly ash brick production units. You can contact us for detailed specifications of the product.

Technical Specifications:

  • Operating Power: 55 kW
  • Production Capacity: Hollow Block 11520~15360 pcs/8 hrs.
QT10-15 Automatic Fly Ash Bricks Machine

QT10-15 Automatic Fly Ash Bricks Machine

LONTTO offers this model in two variants; manual and automatic. Both models differ in operation but can produce high-strength fly ash bricks.

You can choose either a manual or automatic version as per your requirements.

Technical Specifications:

  • Production Capacity: Hollow Block 8′ inch 24000-30000 pcs/10 hrs.
  • Operating Power: 67 kW
  • Molding Cycle: 10-15 secs
QT12-15 Automatic Fly Ash Bricks Machine

QT12-15 Automatic Fly Ash Bricks Machine

LONTTO QT12-15 is an automatic machine for large fly ash brick production plants as it comes with a large footprint.

The quality of bricks produced is good as it is fitted with an advanced hydraulics system and PLC control for smooth and rigid functioning.

Technical Specifications:

  • Operating Power: 67 kW
  • Production Capacity: 8’ Block: 19200-28800 pcs/8hrs.
  • Pallet Size: 100mm x 900mm

Lontto Fly Ash Brick Machine Factory

Lontto Brick Making Machine

LONTTO specializes in the production of fly ash brick making machines. At LONTTO factories, highly qualified engineers and technicians work to build efficient fly ash brick making machines that promise long-lasting performance.

Fly ash brick making machines are available in varying operation modes. From single-handedly operated manual fly ash brick making machines to fully automated plants, LONTTO has it all for your fly ash brick business.

For 30 years, LONTTO has acquired a name for itself in the production of brick making machines and it has sold fly ash brick-making machines all over the globe.

LONTTO provides advanced concrete block making machine for a reasonable price. The company promises top-quality production, flexibility, cost-effective solutions in fly ash brick manufacturing, and finally a reliable & trustworthy customer service for all Local/International clients.

If you are looking for a fly ash brick making machine, you can trust LONTTO as a quality brick making machine manufacturer with reliable customer service and high production quality machinery.

LONTTO believes in the advancement and evolution of brick making technology. Being a pioneer in the work, you can rely on the quality of fly ash brick machines manufactured by LONTTO. Being the top exporter of brick making machines, LONTTO offers the best quality of machinery with a reasonable price tag.

Related Products With Block Making Machine

Compressed Earth Brick Machine

Manual Fly Ash Block Making Machine

Semi-Automatic Fly Ash Block Machine

Cinder Fly Ash Block Making Machine

Automatic Fly Ash Brick Making Machine

Concrete Block Making Machine

automatic block making Machine

Automatic Fly Ash Block Making Machine

Hydraulic Fly Ash Brick Making Machine

The Ultimate Guide: Fly Ash Brick Making Machine

What is a Fly Ash Brick?

Fly ash is collected as a waste material normally from thermal power plants, which is then mixed with lime, gypsum, stone dust, and sand for making fly ash bricks.

Fly ash bricks serve as a good building block for any construction site. Fly ash manufacturing is cost-effective as compared to clay bricks.

Fly ash brick making machines utilize fly ash which is a waste material. Instead of dumping fly ash as waste, it can be utilized in brick production.

fly-ash-bricks

The use of fly ash in brick making is a good choice to make use of a waste that thermal power plants produce.

Fly ash bricks are lightweight with high strength and low heat absorption. These bricks require low mortar during construction due to their uniform size.

You don’t need to soak these bricks in water before using them.

Fly ash bricks are a good candidate for building construction due to their characteristics, cost-saving, and environmental friendliness.

What types of Fly Ash Bricks are manufactured?

Fly ash bricks are classified into three types according to their curing process.

  • Steam Cured Fly Ash Bricks:

Autoclaved fly ash bricks are manufactured by using fly ash and quicklime as a major raw material. After mixing the raw materials and molding bricks, bricks are then steam cured under normal or high pressure to form good quality bricks.

fly-ash-bricks-autoclave

With this process fly ash bricks are formed with a freeze resistance of 15 freeze-thaw cycles with a compressive strength of 15-20 MPa.

  • Naturally Cured Fly Ash Bricks:

With this natural curing process, steam-free and burn-free fly ash bricks are made. Cement is the main constituent in raw material with fly ash, slag, stone powder, sand, and gravel in proportions.

LONTTO’s QT, LMT, and manual fly ash brick making machines are used to manufacture these fly ash bricks with compressive strength of 15 MPa. For low-investment brick production businesses, LONTTO offers a wide range of fly ash brick-making machines to choose from.

  • Kiln Cured Clay Fly Ash Bricks:

Fly ash is mixed with slag and clay as the main components in raw material. A mixer mixes the raw materials and extruded by a vacuum brick machine. The material is then dried and burned at high temperatures for fly ash brick formation.

How Fly Ash bricks are different from clay bricks?

Many brick-making businesses are moving from clay bricks manufacturing to fly ash brick manufacturing due to the increasing demand and good feasibility.

Fly ash bricks are different from clay bricks due to the different raw materials and curing processes.

Fly ash bricks are manufactured by consuming low energy, using thermal plant wastage, and at a lower cost.

On the other hand, clay bricks require a lot of soil and a brick kiln for curing at high temperatures. All that process is expensive and adds pollution to the environment.

Basis Of ComparisonFly Ash BricksClay Bricks
Shapeuniform in shape.Clay bricks also can be made by clay bricks, the shape is uniform
StrengthThe compressive strength of fly ash brick is around 10-20MpaCompressive strength of clay brick is around 8-15Mpa
ColorThe color is generally greyDepends upon the type of soil, It is generally red.
Eco-FriendlinessFly ash bricks are more eco-friendly, the materials are fly ash from power plant wasted materials.The clay bricks is not eco-friendly, It wasted soil.
PorosityLess porous.More porous.
Water AbsorptionFly ash brick has water absorption of about 8-14%.Clay brick has water absorption of about 15-17%.
CostHigher than clay bricksThe materials is soil, so it is cost-saving.
WeightLight weightClay bricks are heavier than fly ash brick

Fly ash bricks have a strength of 100-200 Kg/Cm2 as compared to clay bricks that have 100-150 Kg/Cm2.

Fly ash bricks are produced with a uniform shape and size requiring low mortar while construction. On the other hand, clay bricks tend to be irregular and non-uniform.

Fly ash bricks have low water absorption (8-14%) levels while clay bricks have 15-17%.

When we talk about material wastage while production, fly ash bricks have a wastage percentage of around 3-4% as compared to 8-10% for clay bricks.

What are the advantages of Fly Ash Bricks?

Cost is the crucial metric for every brick-making business. Fly ash bricks manufacturing is a low-cost process as these bricks cost at least 20% less than clay bricks/blocks and nearly 10% less than concrete blocks.

Fly ash bricks have high compressive strength (9-10N/mm2) as compared to clay bricks as these are less porous and have low absorption of water.

Fly ash bricks have a low thermal conductivity which makes these bricks a suitable candidate for areas with hot climates.

Fly ash bricks are more fire-resistant than ordinary clay bricks/blocks.

Fly ash bricks are sustainable building blocks as these bricks are used in the construction of high-rise buildings, homes, factories/warehouses, and power plants.

What is a Fly Ash Brick-making machine?

Fly ash brick-making machine is a piece of engineered equipment used in the production of fly ash bricks.

LONTTO manufactures a whole range of fly ash brick-making machines. Different models of these brick-making machines are targeted towards different customers.

Fly ash brick-making machines are classified into three main types; manual machines, semi-automatic, and fully automatic production lines.

You can choose the right product within your budget and fly ash brick production needs.

Fly ash brick making machines are built to withstand large production cycles to meet the growing demand for fly ash bricks.

fly ash brick making machines

The raw material is fed into the machine, it is then mixed and molded into the type of fly ash brick you require.

High power hydraulics and vibration mechanisms built into these machines help form the good quality brick.

Automatic Fly ash brick-making machines let you save labor cost, production cost, and save raw material waste as all the processes are autonomous.

PLC control lets you interact with the machine interface and automate certain processes and control them as you manufacture bricks.

If you are looking for a fly ash brick-making machine, you can contact us for guidance and a price quote.

What is the raw material proportion for Fly Ash Bricks?

In the case of steam cured fly ash bricks, fly ash 62%, sand 25%, lime 8%, and gypsum 5% are used in said proportions for a good quality of fly ash bricks.

For naturally cured fly ash bricks, cement is used instead of lime and gypsum, and the raw materials are used in portions as; fly ash 50-60%, cement 8-12%, and stone dust or river sand 30-40%.

For clay fly ash burned bricks, use fly ash 52%, clay 40%, and slag 8%. Raw material mixing varies on what type of fly ash bricks you need for your construction site or your customers.

What is the manufacturing process for Fly Ash Bricks?

Fly Ash brick machines are used nowadays for fly ash brick production. Construction in any era is a never-ending process. So, fly ash bricks are needed to meet the market demand.

Fly ash brick-making machines produce good quality bricks. The process of manufacturing is almost the same with all machines but the operation differs as each machine works differently.

First of all, a mixture of raw materials is blended in a pan mixer. After the mixer seems homogeneous, water is added to make it suitable for the next process. After the mixture is created, it is then pressed and molded to form bricks.

The process is the same with small variations. Manual machine models require more manpower in the production process while automatic machines require little input as most of the processes are automated.

How to Choose the Suitable Model of Fly Ash Brick Machine?

LONTTO manufactures a variety of fly ash brick production machines for your businesses.

You can choose a model that fulfills your demand by going through our machines catalog or you can simply contact us and we will share complete details of your selected model.

There are certain factors that you have to keep in mind while choosing the right fit for your fly ash brick business.

  • Budget:

This is the first thing to take into account. You have to analyze your business plan to see which model you can afford with a viable profit margin after you start production.

Budget for fly ash brick machine

Once you have a budget, you can get a price quote for various models and see which one to choose.

  • Production Capacity:

Secondly, you need to have a good estimate of how many bricks you need per day for your business to run smoothly.

If you are starting a medium-sized business, you should opt for a fly ash brick machine model that meets your daily production demand.

  • Brick Types:

You have to make sure that the product you are buying, is fully capable of making the types of brick you require.

When you have a large-sized business, you may need different types of shapes and sizes of bricks.

You can check firsthand, which machine you need and if you want any extra molds.

fly ash brick type

You can always contact our customer support for guidance and help in deciding the best machine for your business.

Our support is working 24/7 to ensure high-quality customer support.

How to pick a company to buy a Fly Ash Brick-making machine?

When you reach a point to decide to buy a fly ash brick-making machine. Certain factors can help you choose the right manufacturer.

Some important points to take into account are listed as under:

  • Product Quality:

Firstly, you need to be certain about the product quality before buying as these fly ash brick machines require a handsome amount of money.

Therefore, you have to make sure the quality of machinery is good. Spare parts are easily available through the manufacturer and machinery lasts long.

High quality of a brick-making machine is also necessary, so you can have a higher number of production cycles and low maintenance is required after long operations.

  • Certifications:

Secondly, the next most important thing is to check if the product is safe to use and quality certified by ISO.

There are a set of certifications and standards that manufacturers should follow and obtain.

Certificatio foy fly ash brick machine

You can check those with the local authorities that operate in the vendor’s country. These certifications are proof that the product is tested and feasible for commercial use.

  • Customer Care:

The third factor is the quality of customer service. A manufacturer should be able to entertain its customers before and after a sale is made, to make sure that the product is shipped as per the client’s requirements.

You should check for reviews from old customers on the company’s website to make sure you are buying from a quality builder.

You should choose a manufacturer that you can rely on even after you have bought the machine. In this way, you can always get guidance in case of any malfunctions or support and ask for a maintenance check.

customer-visting

Customer care should be available 24/7 as customers reside in different time zones.

Good customer service is proof that a manufacturer isn’t just making money selling products but also cares about the real human connection with its customers.

  • Training & Support:

A manufacturer should provide onsite equipment installation assistance and product training for your workers to ensure efficient production of fly ash bricks.

This ensures that your workers will be fully capable of fly ash brick production by efficiently utilizing the machinery.

What is the cost of a Fly Ash Brick-making machine?

When it comes to the cost of fly ash brick-making machines, some factors affect the price. Fly ash brick machines come in different sizes, modes of operation, and production capacity.

Fly ash brick machines are manual, semi-automatic, and fully automatic. Manual machines use manpower completely to operate.

Semi-automatic fly ash brick machines reduce human input that’s required to function. Lastly, fully automatic machines require little human input to operate autonomously.

The cost of a fly ash brick machine is directly proportional to the features and functions it offers.

More autonomous functionality comes at a higher price. Manual machines have low production rates but these models cost low as well for low investment businesses.

With semi-automatic machines, you get more functionality for a bit more price. So, the fully automatic production line level fly ash brick-making machines are the ones that cost the most due to the ease of operation and high production capacity.

The more expensive the machine, the more profit margins it offers for your business.

You can always feel free to contact us for a price quote for any model you choose. Our team is always there to help you make an informed decision.

LONTTO offers the most competitive market prices for the equipment it sells.

Brick making machine price is listed as under:

Sr#Machine ModelEstimated Cost
1LMT4-40 Small Fly Ash Brick Machine$2500-$3500
2LMT4-35 Manual Fly Ash Brick Machine$4500-$6000
3LMT4-26 Semi Automatic Brick Machine$6000-$9000
4QCM4-30 Fly Ash Brick Machine$3000-$4000
5QMJ2-40 Mini Fly Ash Brick Machine$1000-$1350
6QMJ4-45 Mobile Fly Ash Brick Machine$3700-$4500
7QMY4-30 Fly Ash Brick Machine$3800-$4700
8QT4-18 Hydraulic Fly Ash Brick Machine$12000-$16500
9QT4-15 Automatic Fly Ash Brick Machine$30000-$40000
10QT5-15 Automatic Fly Ash Brick Machine$40000-$50000
11QT8-15 Automatic Fly Ash Brick Machine$50000-$65000
12QT10-15 Fully Automatic Fly Ash Brick Machine$60000-$70000

How does our Machine delivery work?

Our shipping partner promises on-time delivery for you. LONTTO offers order tracking till delivery. So, you can have a better idea of where the order is.

A fly ash brick making machine with a small footprint can take 7-15 days. A middle-sized machine takes 15-22 days. Large production line machines take 25-35 days.

delivery fly ash brick making machine

The delivery process for international clients is reliable as DHL is the pioneer in shipping heavy-duty machinery all over the globe.

Why should you choose LONTTO over other manufacturers?

When you have to choose a manufacturer for a fly ash brick-making machine, you have to look for certain criteria. So, you end up buying a quality product that outperforms the competition.

LONTTO assures you of its production quality with fact-checks and guaranteed performance.

First of all, LONTTO manufactures machines with high-grade parts from top suppliers like Schneider, Calyca, Omron, and Emerson, ensuring the highest standards of production.

LONTTO has employed hundreds of highly qualified staff for the manufacturing of these high-performance fly ash brick-making machines.

For LONTTO, customer satisfaction is everything that’s why quality is the first standard LONTTO has always followed.

Therefore, the products that leave LONTTO’s factory, are quality checked and built for long-lasting performance.

Secondly, our website has all the information you need before buying a fly ash brick-making machine. We believe that you are our priority therefore to help you make an informed decision, we share knowledge first and then we market our product.

LONTTO has built a reputation only based on customer satisfaction by delivering products all over the world.

By providing machine installation and training for your workers, LONTTO aims to achieve a good relationship with you.

All the machinery produced by LONTTO is quality certified (ISO 9001) with CE Certification.

Contact us for more info and queries.

Send Enquiry Now

Scroll to Top
